A Comprehensive Guide to Types of Pressure
Pressure. It’s a fundamental concept in physics and engineering, a silent yet powerful force shaping our world, from the vast expanse of the atmosphere to the intricate workings of machinery. While we might intuitively understand the feeling of pressure, grasping its various forms and applications is crucial in diverse fields, whether you’re a student exploring the basics of physics, an engineer designing complex systems, or simply a curious individual wanting to understand the world around you.
This comprehensive guide dives deep into the fascinating world of pressure, exploring its different types, providing clear explanations, and illustrating key concepts with helpful block diagrams. We’ll journey from the air we breathe (atmospheric pressure) to the pressure differences that drive many industrial processes (differential pressure), and beyond, uncovering other important pressure categories. So, buckle up and get ready to unravel the forces that constantly act upon us.
What Exactly is Pressure? A Fundamental Definition
Before we delve into the various types, let’s solidify our understanding of what pressure truly is. In its simplest form, pressure is defined as the force applied perpendicular to a surface per unit area over which that force is distributed.
Mathematically, this is expressed as:
P = F / A
Where:
- P represents pressure
- F represents the perpendicular force
- A represents the area over which the force is applied
The standard unit of pressure in the International System of Units (SI) is the Pascal (Pa), which is defined as one Newton per square meter (N/m²). However, other units like pounds per square inch (psi), bar, torr, and atmospheres (atm) are also commonly used depending on the application and geographical region.
The Ubiquitous Presence of Atmospheric Pressure
Perhaps the most fundamental type of pressure we encounter daily is atmospheric pressure, also known as barometric pressure. This is the pressure exerted by the weight of the Earth’s atmosphere, a vast blanket of gases surrounding our planet.
Imagine a column of air extending from the Earth’s surface all the way to the top of the atmosphere. The weight of this air column exerts a force on the surface below it, and this force per unit area is what we define as atmospheric pressure.
Key Characteristics of Atmospheric Pressure:
- Varies with Altitude: As you ascend to higher altitudes, there is less air above you, hence the weight of the air column decreases, resulting in lower atmospheric pressure. This is why airplanes maintain pressurized cabins – the outside pressure at cruising altitude is significantly lower than what the human body is accustomed to.
- Varies with Weather Conditions: Atmospheric pressure is not constant at a given location. Weather systems, such as high-pressure and low-pressure zones, cause fluctuations in atmospheric pressure. High-pressure systems are typically associated with clear and stable weather, while low-pressure systems often bring clouds and precipitation.
- Standard Atmospheric Pressure (atm): To have a reference point, a standard atmospheric pressure (atm) is defined as the mean sea level pressure at a temperature of 15 degrees Celsius (59 degrees Fahrenheit). This is approximately equal to 101,325 Pascals (Pa) or 14.7 pounds per square inch (psi).

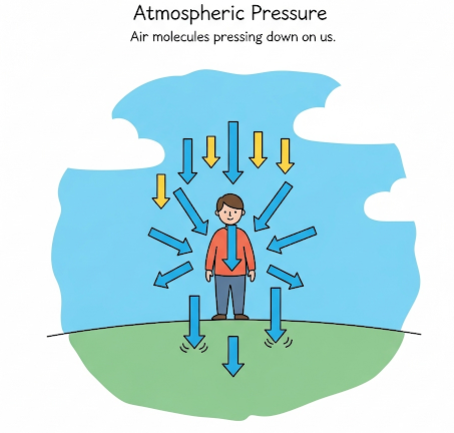

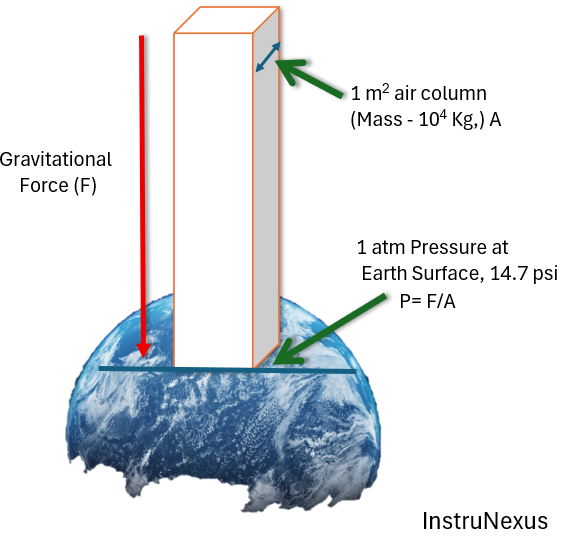

Block Diagram Illustrating Atmospheric Pressure:
Real-World Examples of Atmospheric Pressure:
- Breathing: Our lungs utilize the difference between atmospheric pressure and the pressure inside our chest cavity to draw air in and push it out.
- Suction Cups: A suction cup works by expelling air from the space between the cup and the surface, creating a lower pressure inside. The higher atmospheric pressure outside then pushes the cup against the surface.
- Weather Forecasting: Meteorologists rely heavily on atmospheric pressure readings to predict weather patterns.
The Significance of Differential Pressure
Differential pressure, as the name suggests, is the difference in pressure between two distinct points within a system or across a barrier. This type of pressure is incredibly important in various engineering and industrial applications, as it often drives flow and facilitates measurement.
Understanding Differential Pressure:
Imagine two connected containers with different pressure levels. The pressure difference between these containers will cause a flow of fluid (liquid or gas) from the region of higher pressure to the region of lower pressure until the pressures equalize (ignoring other factors like gravity and viscosity).
Key Applications of Differential Pressure:
- Flow Measurement: Many flow meters, such as orifice plates and Venturi meters, work by creating a constriction in a pipe. This constriction causes a pressure drop, and the magnitude of this pressure difference is directly related to the flow rate of the fluid.
- Level Measurement: Differential pressure sensors can be used to determine the liquid level in a tank. The pressure at the bottom of the tank is proportional to the height of the liquid column, and by measuring the difference between this pressure and the pressure at the top of the tank (or atmospheric pressure), the liquid level can be accurately determined.
- Filter Monitoring: In filtration systems, a differential pressure gauge is used to monitor the pressure difference across the filter. As the filter becomes clogged with particles, the pressure drop across it increases. A high differential pressure indicates that the filter needs cleaning or replacement.
- Pump and Compressor Performance: Differential pressure is a key parameter in evaluating the performance of pumps and compressors. A pump increases the pressure of a liquid, and the differential pressure across the pump is a measure of the head it can generate. Similarly, a compressor increases the pressure of a gas, and the differential pressure indicates its compression ratio.
Block Diagram Illustrating Differential Pressure (Flow Measurement):
Beyond the Basics: Exploring Other Types of Pressure
While atmospheric and differential pressure are fundamental, several other types of pressure are important in specific contexts:
Absolute Pressure: Absolute pressure is the total pressure exerted by a system, including atmospheric pressure. It is measured relative to a perfect vacuum (zero pressure). Therefore, absolute pressure is always positive. The relationship between absolute pressure, gauge pressure (discussed below), and atmospheric pressure is:
Absolute Pressure = Gauge Pressure + Atmospheric Pressure
Gauge Pressure: Gauge pressure is the pressure relative to the local atmospheric pressure. Many pressure gauges are calibrated to read zero when exposed to atmospheric pressure. Therefore, gauge pressure can be positive (above atmospheric) or negative (below atmospheric, also known as vacuum pressure). When a tire pressure gauge reads 30 psi, it typically means 30 psi above the surrounding atmospheric pressure.
Hydrostatic Pressure: This is the pressure exerted by a fluid at rest due to the weight of the fluid above a certain point. Hydrostatic pressure increases with depth. The formula for hydrostatic pressure is:
P = ρgh
Where:
- ρ (rho) is the density of the fluid
- g is the acceleration due to gravity
- h is the depth below the surface of the fluid
This principle is crucial in understanding the pressure at the bottom of oceans, lakes, and storage tanks.
Dynamic Pressure: Dynamic pressure is the kinetic energy per unit volume of a fluid in motion. It is related to the velocity of the fluid and is an important component of Bernoulli’s principle, which describes the relationship between fluid speed, pressure, and elevation. The formula for dynamic pressure is:
q = ½ρv²
Where:
- ρ is the density of the fluid
- v is the velocity of the fluid
Dynamic pressure plays a significant role in aerodynamics, where it is related to the force exerted by the moving air.
Total Pressure (Stagnation Pressure): Total pressure is the sum of the static pressure (the actual thermodynamic pressure of the fluid) and the dynamic pressure. It is the pressure that would be measured if the fluid flow were brought to a complete stop isentropically (without any loss of total energy). Total pressure is a key concept in high-speed fluid flows.
Block Diagram Illustrating the Relationship Between Absolute, Gauge, and Atmospheric Pressure
Conclusion: The Multifaceted Nature of Pressure
Pressure is a fundamental physical quantity with diverse manifestations that play crucial roles in natural phenomena and technological applications. Understanding the different types of pressure – from the atmospheric pressure that sustains life to the differential pressure that drives industrial processes – provides valuable insights into the world around us. By grasping these concepts and their practical implications, we can better appreciate the forces that shape our environment and the technologies we rely on. This exploration serves as a stepping stone for further delving into the fascinating field of fluid mechanics and its countless applications.
